Ogden Origin Specification
Durable, safe and really comfortable to ride
Front and rear light
Stay safe while cycling in dark. With powerful front light connected to the electric bike battery you can be sure to be visible on the road, and avoid all the potholes and puddles while cycling in the dark.
Switch the light on and off from the main controller fitted on your handlebars.

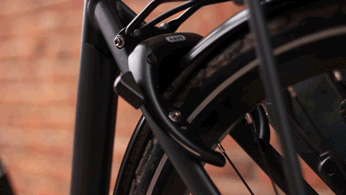

The frame/wheel lock is incredibly convenient. You cannot leave home without your lock because it is attached permanently to your bike. Easy to use with a key provided.
USB charging point
The USB charging point allows you to charge any USB devices from your electric bike battery pack. Charge your phone, tablet, bike light, gps, or camera.
LG lithium-ion battery has been mounted securely in the rack frame. It offers up to 35 miles of assist on one charge as standard (optional upgrade available up to 70 miles).
The battery has been also equipped with a rear light, side reflectors and battery level indicator.
This battery can be charged while on the bike or at home.
The suspension seat post will improve your cycling experience. It reduces the effect of terrain on the body allowing energy to be concentrated on the pedals. Consistent seated pedaling allows for increased power and comfort so you’ll finish your ride faster and fresher and ready to ride again.
Rear mount kickstand
The rear mount kickstand is more stable than centre mount propstands - especially if you carry extra weight (like battery, child seat and panniers) on the back of the bike.
Tool Free adjustable stem
Adjust the stem and handlebar easily in only three steps and without using any tools.
Simply open the lever, adjust the stem and handlebar position and close the lever.
Frame - 6061 aluminium, internal cabling
Fork - SR Suntour NEX
Headset - semi integrated
Stem - alloy, adjustable, black
Handlebars - Neco, alloy, black
Grips - Ergo comfort
Front brake - Tektro mechanical, disc
Rear brake - Shimano BR-C3010 roller brake
Rim - 700c alloy, double wall, cnc sidewall
Spokes - stainless steel, black
Tyres - Kenda City
Front hub - Joytech
Rear hub - Shimano Nexus SG-C3000-7R
Gear shifter - Shimano Nexus SL-7S31
Chainring - Prowheel
Chain - Prowheel
Saddle - Velo comfort
Motor - Bafang Max, center mounted, 36V, 25W
Controller - Bafang handlebar controller
Display - Bafang HMI with a high-contrast LCD display
Pedal Assist System - 1:1 intelligent PAS
Battery - Lithium Ion, 36V, 10.4AH/ 36V, 17.5AH
Range - up to 35 miles/ up to 70 miles
Max assisted speed - 15.6MPH
Charger - 110-240v, AC 5-6hz, 36V 2A
Lights - SPANNING, LED 15 lux
Head tube length
Top tube horizontal
Bottom bracket height
Bottom bracket centre to top of seat tube
Lightweight and durable. This frame has been designed to offer you maximum riding comfort whilst harnessing the powerful BAFANG motor. 6061 aluminium material makes the bike lighter yet strong for your riding demands. Internal cable routing not only offers a clean look but creates a bike which can hold its own in British weather.
Bafang E-Max Comfis motor
Powerful, smooth and silent.
The Max Drive System puts the rider in complete control. In spite of a generous power output and a maximum torque of more than 80 N.m, the motor operates in virtual silence.
Shimano Nexus 7 hub gears
Low maintenance, simple and easy to use.
Gear shifting action is independent of pedaling. You can shift gears anytime, while standing still, pedaling or coasting. Nexus is the ideal coffee shop bike.
Suntour NCX Suspension forks
This suspension fork is designed for those who want to commute with comfort. Suntour use a unique casting technology. Small potholes in the asphalt are decently damped and passing over curbstones is smooth and keeps the rider happy.
